Single gyration QTZ63-TC5010 4t load small tower crane with factory good price

Name: Single gyration QTZ63TC5010 4t load small tower crane with factory good price
Brand: Katop
Price: 25 USD

China Single gyration QTZ63-TC5010 4t load small tower crane with factory good price wholesale

Place of Origin : Shandong, China

Brand Name : Katop

Certification : CE, ISO9001

Model Number : QTZ63-5010 Single-gyration

MOQ : 1 UNIT

Price : $25,000.00~$29,600.00

Packaging Details : Nude packed, well fixed, uninstalled

Delivery Time : About 20~30 workdays after receipt the deposit;

Payment Terms : 30%TT in deposit, the balance 70%TT before shipment or by LC at sight

Supply Ability : 30units/month

Max.load : 4.0t

Boom length : 50m

Tip load : 1.0t

Contact Now

Katop Machinery

`With more than 10 years experience of producing construction hoist and tower crane , Shandong`

`Katop machinery factory can supply you the good products with excellent quality, reasonable price and`

`good after-sale service.`

Product Specifications

`1. Lifting height 31 m, loading capacity 1ton to 4tons, long jib length 50 m`

`2.Factory supply, low price and excelent quality, with adhered section optional`

`3.Installation support including oversea service, help customers to install and adjust the production well`

`4.Good after-sales service with 1 year warranty and in time supply of spare parts`

`Advantages:`

`1.Elements from Schneider are adopted in electrical system, performance of which is stable and reliable.`

2. Main ports of tower crane is welded with CO2 gas protected welding and full-auto submerged arc welding

that makes the stability of the whole machine be improved considerably.

3. The whole machine runs stably with good adjustable performance.

4.High working speed and efficiency, great speed-adjustment performance, and stable running;

5.Wide working range, various working methods, and great applicability;

6.The whole machine is of reasonable arrangement and beautiful in design;

7.Complete safety devices, all mechanism are equipped with brake device to ensure the safe and reliable running.

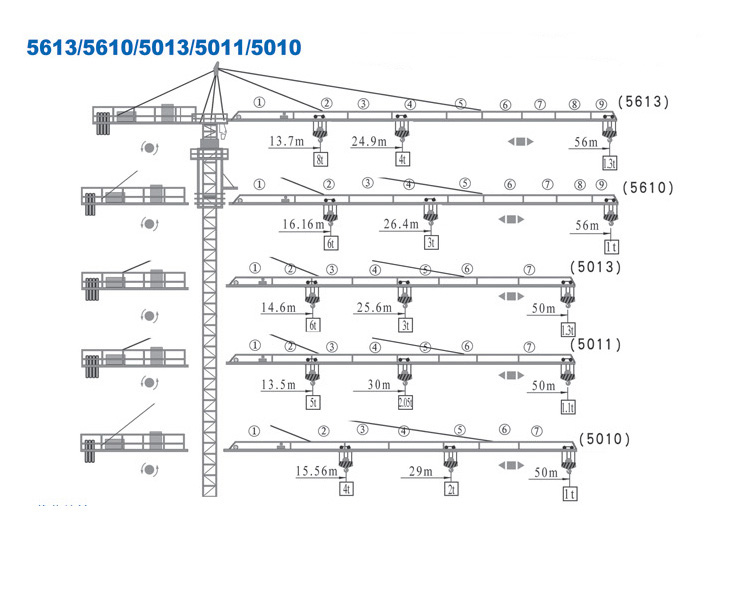

`Main Technical Parameters of YX63 (5010 Single-gyration) Tower Crane`

`Name`

`Unit`

`Value`

`Rated load moment`

`kN.m`

`630`

`Max.rated load capacity`

`t`

`4`

`Working radius`

`m`

`3~50`

`Rated load capacity at max.radius`

`t`

`1`

`Hoisting height`

`Freestanding`

`m`

`30`

`Attaching`

`Double rate`

`m`

`120`

`Quadruple rate`

`m`

`60`

`Tail slewing radius`

`m`

`11.8`

`Counterweight`

`t`

`10.2`

`Crane weight(not including counterweight and ballast)`

`t`

`25.5`

`(1) Hoisting mechanism: Matching with frequency tansforming & mulipolar dynamo resistivity for timing. Stably`

`shifting impules the electric fence gently. Multipolar dynamo works stably, it is simple and economic with gentle`

`impulsive currency when starting and shifting.`

`(2) Trolley mechanism: Frequency transformer and wire wrapping motor can be applied to conduct speed`

`regulating.It is economic and convenient to operate.`

`(3) Slewing mechanism: Frequency transformer and wire wrapping motor can be applied to conduct speed`

`regulating.`

`The jacking mechanism`

`The jacking mechanism specification`

`Climbing mechanism`

`Climbing speed`

`m/min`

`0.5`

`Hydraulic system rated working pressure`

`MPa`

`25`

`Motor type`

`/`

`Y132M-4`

`Power`

`kW`

`7.5`

`Rotating speed`

`r/min`

`144`

`The trolleying mechanism`

`The trolleying mechanism specification`

`Trolley mechanism`

`Trolley speed`

`m/min`

`38.6/25.2`

`Motor type`

`/`

`Y132M-4/6`

`Power`

`kW`

`2.2/1.5`

`Rotating speed`

`r/min`

`1440/960`

`The slewing mechanism`

`The slewing mechanism specification`

`Slewing mechanism`

`Rotating speed`

`r/min`

`0.62`

`Motor type`

`/`

`YZR132M-6`

`Power`

`kW`

`3.7`

`Rotating speed`

`r/min`

`90`

`The lifting mechanism`

`The lifting mechanism specification`

`Hoisting mechanism`

`Hoisting speed`

`Rate`

`/`

`α=2`

`α=4`

`Speed`

`m/min`

`9`

`35`

`70`

`4.5`

`17.5`

`35`

`Max.load capacity`

`t`

`2`

`1`

`4`

`2`

`Motor type`

`/`

`YZD200L1-4/8/24`

`Power`

`kW`

`4/15/15`

`Rotating speed`

`r/min`

`1440/720/22`

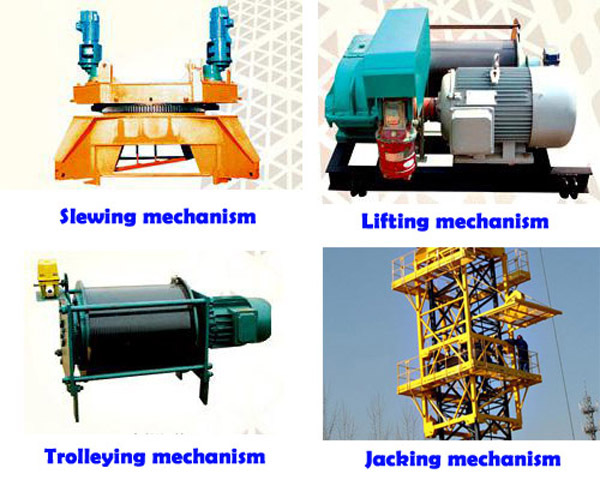

`The parts of tower crane`

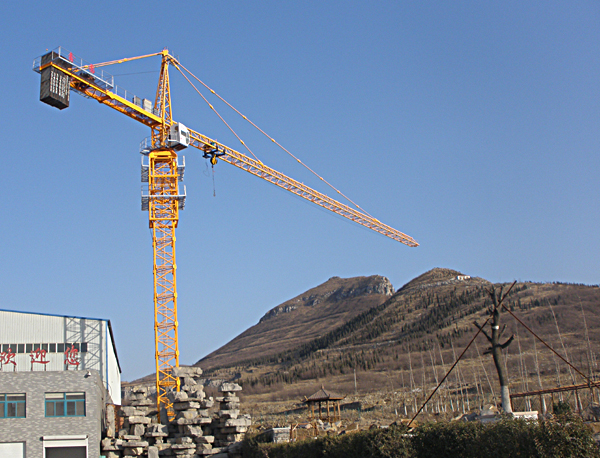

`Construction site`

`Delivering of Katop Tower Crane:`

`1.Short delivery time, normally within 30workdays;`

`2.All products will be well fixed;`

`3.More easy wear spare parts will be attached for free;`

`4.The transportation will be safe and stable;`

`1.All of our machines will be with 1 year warranty after receipt the destination port;`

`2.More easy ware spare parts will be attached for free;`

`3.Oversea service are available from us, our experts will help you to install and adjust the tower crane`

`in your area;`

`4.Technology support for maintenance and maintenance spare parts will be supplied in time;`

`Why Choose US?`

`1. Experience. More than 10 years of experience in manufacturing tower crane and construction hoist, assured good`

`quality.`

`2. Price. We supply factory direct price, will save your cost than buy from distributors or other factories;`

`3.Excellent quality. All materials from famous plants to ensure the long time use and safety, and we are one of the`

`suppliers of standard mast for XCMG.`

`4. Services. Professional service team can give powerful support for our products. Engineers have more than 10`

`years' experience in products and ready to solve all your problems.`

`5. Innovation. Technical and management innovation guarantee our quality to be in top position in our industry.`
